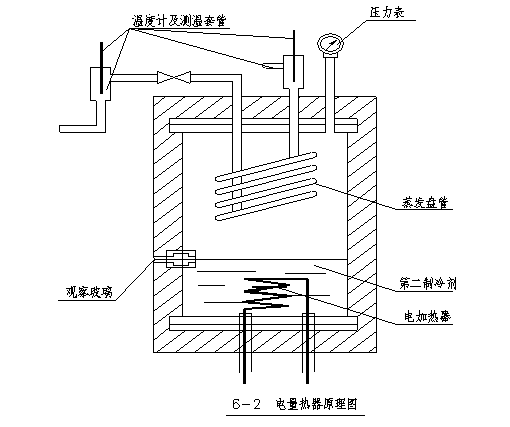

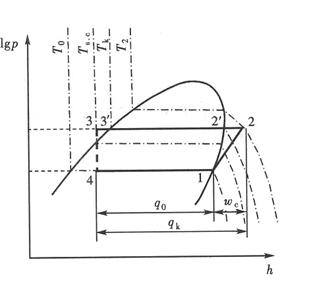

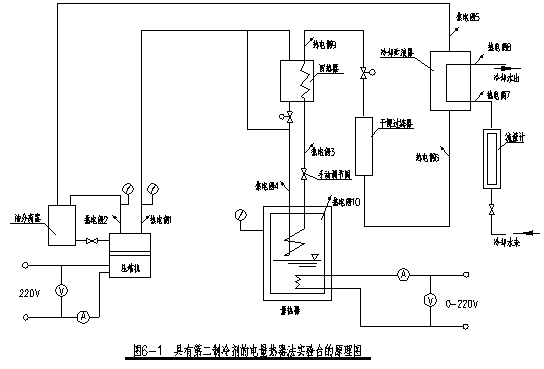

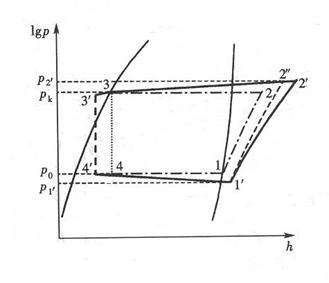

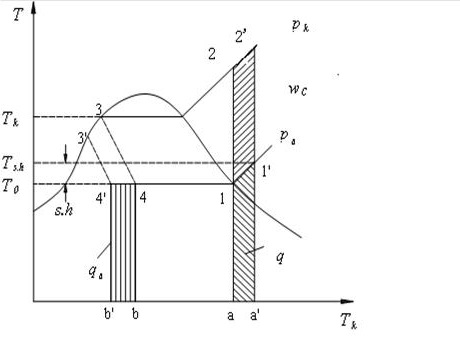

工況 | 蒸氣溫度 | 吸氣溫度 | 冷凝溫度 | 再冷溫度 |
標準工況 | -15 | +15 | +30 | +25 |
空調工況 | +5 | +15 | +40 | +35 |
最大功率工況 | +10 | +15 | +50 | +50 |
最大壓差工況 | -30 | ±0 | +50 | +50 |
溫度 | 絕對壓力 | 比容(l/Kg) | 比焓(KJ/Kg) | 比潛熱 | 比熵(KJ/Kg.K) | |||
T(℃) | P(bar) | V’ | V” | h’ | h” | KJ/Kg | S’ | S” |
-55 | 0.300 | 0.641 | 492.11 | 150.70 | 326.91 | 176.21 | 0.7995 | 1.6072 |
-50 | 0.392 | 0.647 | 384.11 | 155.06 | 329.30 | 174.24 | 0.8192 | 1.6000 |
-45 | 0.505 | 0.653 | 303.59 | 159.45 | 331.69 | 172.24 | 0.8386 | 1.5936 |
-40 | 0.642 | 0.659 | 242.72 | 163.85 | 334.07 | 170.22 | 0.8576 | 1.5877 |
-35 | 0.807 | 0.665 | 196.12 | 168.27 | 336.44 | 168.17 | 0.8764 | 1.5825 |
-30 | 1.005 | 0.672 | 160.01 | 172.72 | 338.80 | 166.08 | 0.8948 | 1.5779 |
-25 | 1.237 | 0.678 | 131.73 | 177.20 | 341.15 | 163.95 | 0.9130 | 1.5737 |
-20 | 1.510 | 0.685 | 109.34 | 181.70 | 343.48 | 161.78 | 0.9309 | 1.5699 |
-15 | 1.827 | 0.693 | 91.45 | 186.23 | 345.78 | 159.55 | 0.9485 | 1.5666 |
-10 | 2.193 | 0.700 | 77.03 | 190.78 | 348.06 | 157.28 | 0.9659 | 1.5636 |
-9 | 2.772 | 0.702 | 74.49 | 191.71 | 348.52 | 156.81 | 0.9693 | 1.5630 |
-8 | 2.354 | 0.703 | 72.05 | 192.62 | 348.97 | 156.35 | 0.9728 | 1.5625 |
-7 | 2.437 | 0.705 | 69.70 | 193.54 | 349.42 | 155.88 | 0.9762 | 1.5619 |
-6 | 2.523 | 0.706 | 67.46 | 194.46 | 349.87 | 155.41 | 0.9796 | 1.5614 |
-5 | 2.612 | 0.708 | 65.29 | 195.38 | 350.32 | 154.94 | 0.9830 | 1.5609 |
-4 | 2.702 | 0.710 | 63.22 | 196.30 | 350.76 | 154.46 | 0.9865 | 1.5604 |
-3 | 2.795 | 0.711 | 61.22 | 197.22 | 351.21 | 153.99 | 0.9899 | 1.5599 |
-2 | 2.891 | 0.713 | 59.30 | 198.15 | 351.65 | 153.50 | 0.9932 | 1.5594 |
-1 | 2.898 | 0.715 | 57.45 | 199.07 | 352.09 | 153.02 | 0.9966 | 1.5589 |
0 | 3.089 | 0.716 | 55.68 | 200.00 | 352.54 | 152.54 | 1.0000 | 1.5584 |
1 | 3.192 | 0.718 | 53.97 | 200.92 | 352.97 | 152.05 | 1.0034 | 1.5580 |
2 | 3.297 | 0.720 | 52.32 | 201.86 | 353.41 | 151.55 | 1.0067 | 1.5575 |
3 | 3.405 | 0.721 | 50.74 | 202.79 | 353.85 | 151.06 | 1.0101 | 1.5571 |
4 | 3.516 | 0.723 | 49.74 | 203.72 | 354.28 | 150.56 | 1.0134 | 1.5567 |
5 | 3.629 | 0.725 | 49.21 | 204.66 | 354.72 | 150.06 | 1.0168 | 1.5563 |
6 | 3.745 | 0.727 | 46.32 | 205.59 | 355.15 | 149.56 | 1.0201 | 1.5559 |
7 | 3.865 | 0.728 | 44.95 | 206.53 | 355.58 | 149.05 | 1.0234 | 1.5555 |
8 | 3.986 | 0.730 | 43.63 | 207.47 | 356.01 | 148.54 | 1.0267 | 1.5551 |
9 | 4.111 | 0.732 | 42.36 | 208.42 | 356.44 | 148.02 | 1.0300 | 1.5547 |
10 | 4.238 | 0.734 | 41.13 | 209.35 | 356.86 | 147.51 | 1.0333 | 1.5543 |
12 | 4.502 | 0.738 | 38.80 | 211.25 | 357.71 | 146.46 | 1.0399 | 1.5536 |
14 | 4.778 | 0.741 | 36.63 | 213.14 | 358.54 | 145.40 | 1.0465 | 1.5529 |
16 | 5.067 | 0.745 | 34.81 | 215.05 | 359.37 | 144.32 | 1.0530 | 1.5522 |
18 | 5.368 | 0.749 | 32.71 | 216.97 | 360.20 | 143.23 | 1.0595 | 1.5515 |
20 | 5.682 | 0.753 | 30.94 | 218.88 | 361.01 | 142.13 | 1.0660 | 1.5509 |
22 | 6.011 | 0.757 | 29.29 | 220.81 | 361.81 | 141.00 | 1.0725 | 1.5502 |
24 | 6.352 | 0.762 | 27.73 | 222.75 | 362.61 | 139.86 | 1.0790 | 1.5496 |
26 | 6.709 | 0.766 | 26.28 | 224.69 | 363.39 | 138.70 | 1.0854 | 1.5491 |
28 | 7.080 | 0.770 | 24.91 | 226.65 | 364.17 | 137.52 | 1.0918 | 1.5485 |
30 | 7.465 | 0.775 | 23.63 | 228.62 | 364.94 | 136.32 | 1.0982 | 1.5479 |
32 | 7.867 | 0.779 | 22.42 | 230.59 | 365.69 | 135.10 | 1.1046 | 1.5474 |
34 | 8.284 | 0.784 | 21.29 | 232.59 | 366.44 | 133.85 | 1.1110 | 1.5468 |
36 | 8.717 | 0.789 | 20.22 | 234.59 | 367.17 | 132.58 | 1.1174 | 1.5463 |
38 | 9.167 | 0.794 | 19.21 | 236.60 | 367.80 | 131.29 | 1.1238 | 1.5457 |
40 | 9.634 | 0.799 | 18.26 | 238.62 | 368.60 | 129.98 | 1.1301 | 1.5452 |
42 | 10.118 | 0.804 | 17.36 | 240.68 | 369.29 | 128.63 | 1.1365 | 1.5447 |
44 | 10.620 | 0.810 | 16.52 | 242.71 | 369.97 | 127.26 | 1.1429 | 1.5441 |
46 | 11.140 | 0.815 | 15.72 | 244.78 | 370.64 | 125.86 | 1.1492 | 1.5436 |
48 | 11.679 | 0.821 | 14.96 | 246.86 | 371.29 | 124.43 | 1.1556 | 1.5431 |
50 | 12.236 | 0.827 | 14.24 | 248.96 | 371.92 | 122.96 | 1.1620 | 1.5425 |
溫度 t(℃) |
絕對壓力 p(Mpa) |
密度 (kg/m3) |
比容 (m3/kg) |
比焓 h(kJ/kg) |
比熵 s[kJ/(kg·℃)] |
質量比熱cp [kJ/(kg·℃)] |
|||
液體 | 氣體 | 液體 | 氣體 | 液體 | 氣體 | 液體 | 氣體 | ||
-100.0 -90.00 -80.00 -70.00 -60.00 |
0.00201 0.00481 0.01037 0.02047 0.03750 |
1571.3 1544.9 1518.2 1491.2 1463.7 |
8.2660 3.6448 1.7782 0.94342 0.53680 |
90.71 101.32 111.94 122.58 133.27 |
358.97 363.85 368.77 373.70 378.59 |
0.5050 0.5646 0.6210 0.6747 0.7260 |
2.0543 1.9980 1.9508 1.9108 1.8770 |
1.061 1.061 1.062 1.065 1.071 |
0.497 0.512 0.528 0.545 0.564 |
-50.00 -48.00 -46.00 -44.00 -42.00 |
0.06453 0.07145 0.07894 0.08705 0.09580 |
1435.6 1429.9 1424.2 1418.4 1412.6 |
0.32385 0.29453 0.26837 0.24498 0.22402 |
144.03 146.19 148.36 150.53 152.70 |
383.42 384.37 385.32 386.26 387.20 |
0.7752 0.7849 0.7944 0.8039 0.8134 |
1.8480 1.8428 1.8376 1.8327 1.8278 |
1.079 1.081 1.083 1.086 1.088 |
0.585 0.589 0.594 0.599 0.603 |
-40.81b -40.00 -38.00 -36.00 -34.00 |
0.10132 0.10523 0.11538 0.12628 0.13797 |
1409.2 1406.8 1401.0 1395.1 1389.1 |
0.21260 0.20521 0.18829 0.17304 0.15927 |
154.00 154.89 157.07 159.27 161.47 |
387.75 388.13 389.06 389.97 390.89 |
0.8189 0.8227 0.8320 0.8413 0.8505 |
1.8250 1.8231 1.8186 1.8141 1.8098 |
1.090 1.091 1.093 1.096 1.099 |
0.606 0.608 0.613 0.619 0.624 |
-32.00 -30.00 -28.00 -26.00 -24.00 |
0.15050 0.16389 0.17819 0.19344 0.20968 |
1383.2 1377.2 1371.1 1365.0 1358.9 |
0.14682 0.13553 0.12528 0.11597 0.10749 |
163.67 165.88 168.10 170.33 172.56 |
391.79 392.69 393.58 394.47 395.34 |
0.8596 0.8687 0.8778 0.8868 0.8957 |
1.8056 1.8015 1.7975 1.7937 1.7899 |
1.102 1.105 1.108 1.112 1.115 |
0.629 0.635 0.641 0.646 0.653 |
-22.00 -20.00 -18.00 -16.00 -14.00 |
0.22696 0.24531 0.26479 0.28543 0.30728 |
1352.7 1346.5 1340.3 1334.0 1327.6 |
0.09975 0.09268 0.08621 0.08029 0.07485 |
174.80 177.04 179.30 181.56 183.83 |
396.21 397.06 397.91 398.75 399.57 |
0.9046 0.9135 0.9223 0.9331 0.9398 |
1.7862 1.7826 1.7791 1.7757 1.7723 |
1.119 1.123 1.127 1.131 1.135 |
0.659 0.665 0.672 0.678 0.685 |
-12.00 -10.00 -8.00 -6.00 -4.00 |
0.33038 0.35479 0.38054 0.40769 0.43628 |
1321.2 1314.7 1308.2 1301.6 1295.0 |
0.06986 0.06527 0.06103 0.05713 0.05352 |
186.11 188.40 190.70 193.01 195.33 |
400.39 401.20 401.99 402.77 403.55 |
0.9485 0.9572 0.9658 0.9744 0.9830 |
1.7690 1.7658 1.7627 1.7596 1.7566 |
1.139 1.144 1.149 1.154 1.159 |
0.692 0.699 0.707 0.715 0.722 |
-2.00 0.00 2.00 4.00 6.00 |
0.46626 0.49799 0.53120 0.56605 0.60259 |
1288.3 1281.5 1274.7 1267.8 1260.8 |
0.05019 0.04710 0.04424 0.04159 0.03913 |
197.66 200.00 202.35 204.71 207.09 |
404.30 405.05 405.78 406.50 407.20 |
0.9915 1.0000 1.0085 1.0169 1.0254 |
1.7536 1.7507 1.7478 1.7450 1.7422 |
1.164 1.169 1.175 1.181 1.187 |
0.731 0.739 0.748 0.757 0.766 |
溫度 t(℃) |
絕對壓力 p(Mpa) |
密度 (kg/m3) |
比容 (m3/kg) |
比焓 h(kJ/kg) |
比熵 s[kJ/(kg·℃)] |
質量比熱cp [kJ/(kg·℃)] |
|||
液體 | 氣體 | 液體 | 氣體 | 液體 | 液體 | 氣體 | 液體 | ||
8.00 10.00 12.00 14.00 16.00 |
0.64088 0.68095 0.72286 0.76668 0.81244 |
1253.8 1246.7 1239.5 1232.2 1224.9 |
0.03683 0.03470 0.03271 0.03086 0.02912 |
209.47 211.87 214.28 216.70 219.14 |
407.89 408.56 409.21 409.85 410.47 |
1.0338 1.0422 1.0505 1.0589 1.0672 |
1.7395 1.7368 1.7341 1.7315 1.7289 |
1.193 1.199 1.206 1.213 1.220 |
0.775 0.785 0.795 0.806 0.817 |
18.00 20.00 22.00 24.00 26.00 |
0.86020 0.91002 0.96195 1.0160 1.0724 |
1217.4 1209.9 1202.3 1194.6 1186.7 |
0.02750 0.02599 0.02457 0.02324 0.02199 |
221.59 224.06 226.54 229.04 231.55 |
411.07 411.66 412.22 412.77 413.29 |
1.0755 1.0838 1.0921 1.1004 1.1086 |
1.7263 1.7238 1.7212 1.7187 1.7162 |
1.228 1.236 1.244 1.252 1.261 |
0.828 0.840 0.853 0.866 0.879 |
28.00 30.00 32.00 34.00 36.00 |
1.1309 1.1919 1.2552 1.3210 1.3892 |
1178.8 1170.7 1162.6 1154.3 1145.8 |
0.02082 0.01972 0.01869 0.01771 0.01679 |
234.08 236.62 239.19 241.77 244.38 |
413.79 414.26 414.71 415.14 415.54 |
1.1169 1.1252 1.1334 1.1417 1.1499 |
1.7136 1.7111 1.7086 1.7061 1.7036 |
1.271 1.281 1.291 1.302 1.314 |
0.893 0.908 0.924 0.940 0.957 |
38.00 40.00 42.00 44.00 46.00 |
1.4601 1.5336 1.6098 1.6887 1.7704 |
1137.3 1128.5 1119.6 1110.6 1101.4 |
0.01593 0.01511 0.01433 0.01360 0.01291 |
247.00 249.65 252.32 255.01 257.73 |
415.91 416.25 416.55 416.83 417.07 |
1.1582 1.1665 1.1747 1.1830 1.1913 |
1.7010 1.6985 1.6959 1.6933 1.6906 |
1.326 1.339 1.353 1.368 1.384 |
0.967 0.995 1.015 1.037 1.061 |
48.00 50.00 52.00 54.00 56.00 |
1.8551 1.9427 2.0333 2.1270 2.2239 |
1091.9 1082.3 1072.4 1062.3 1052.0 |
0.01226 0.01163 0.01104 0.01048 0.00995 |
260.47 263.25 266.05 268.89 271.76 |
417.27 417.44 417.56 417.63 417.66 |
1.1997 1.2080 1.2164 1.2248 1.2333 |
1.6879 1.6852 1.6824 1.6795 1.6766 |
1.401 1.419 1.439 1.461 1.485 |
1.086 1.113 1.142 1.173 1.208 |
58.00 60.00 65.00 70.00 75.00 |
2.3240 2.4275 2.7012 2.9974 3.3177 |
1041.3 1030.4 1001.4 969.7 934.4 |
0.00944 0.00896 0.00785 0.00685 0.00595 |
274.66 277.61 285.18 293.10 301.46 |
417.63 417.55 417.06 416.09 414.49 |
1.2418 1.2504 1.2722 1.2945 1.3177 |
1.6736 1.6705 1.6622 1.6529 1.6424 |
1.511 1.539 1.626 1.743 1.913 |
1.246 1.287 1.413 1.584 1.832 |
80.00 85.00 90.00 95.00 96.15c |
3.6638 4.0378 4.4423 4.8824 4.9900 |
893.7 844.8 780.1 662.9 523.8 |
0.00512 0.00434 0.00356 0.00262 0.00191 |
310.44 320.28 332.09 349.56 366.90 |
412.01 408.19 401.87 387.28 366.90 |
1.3423 1.3690 1.4001 1.4462 1.4927 |
1.6299 1.6142 1.5922 1.5486 1.4927 |
2.181 2.682 3.981 17.31 ∞ |
2.231 2.984 4.975 25.29 ∞ |
